20T/H RO Filter System for Borehole Water Treatment
The 20T/H RO Filter System for Borehole Water Treatment is designed to remove salts, hardness, and contaminants from groundwater, delivering stable and high quality purified water for industrial and commercial use.
20T/H stable production
High salt rejection rate
Optimized for borehole water
Energy efficient operation
Automatic control system
Durable industrial components
Easy installation and maintenance
20T/H RO Filter System for Borehole Water Treatment Specifications
The 20T/H RO Filter System for Borehole Water Treatment is engineered to handle groundwater with high hardness and variable salinity. It integrates pretreatment filtration, high pressure pumping, and reverse osmosis membrane separation to effectively remove dissolved salts, heavy metals, and organic impurities.
Designed for stable 20T/H output, the system ensures consistent permeate quality, optimized recovery rate, and energy efficient operation, making it suitable for industrial processing, agricultural irrigation, and commercial water supply projects.
Parameter
Specification
Capacity
20T/H
Desalination Rate
≥98%
Recovery Rate
60–75%
Feed Water TDS
≤5000 ppm
Power Supply
380V/50Hz
Control Mode
Automatic PLC
RO Membrane
Industrial grade
Operating Pressure
1.0–1.6 MPa
20T/H RO Filter System for Borehole Water Treatment Process Flow
The 20T/H RO Filter System for Borehole Water Treatment process flow begins with raw groundwater entering a feed tank and booster pump, followed by multimedia filtration to remove suspended solids and turbidity. Activated carbon filtration reduces organic matter and residual chlorine, while a precision cartridge filter protects the membranes. The high pressure pump then feeds water into the RO membranes, where dissolved salts, hardness, and contaminants are separated, producing purified water and concentrated brine for discharge or reuse.
20T/H RO Filter System for Borehole Water Treatment Core Advantage
Optimized Design For Borehole Water
Specially configured pretreatment effectively handles high hardness and variable salinity groundwater conditions.
Stable 20T/H Continuous Output
Engineered system structure ensures consistent water production and reliable long term operation.
High Efficiency RO Membrane System
Advanced industrial RO membranes provide excellent salt rejection and stable permeate quality.
Energy Saving And Cost Efficient Operation
Optimized pump selection and recovery rate reduce energy consumption and operating costs.
Intelligent Automatic Control Panel
PLC based control enables automatic flushing, monitoring, and comprehensive safety protection.
Durable Industrial Grade Components
High quality pumps, pressure vessels, and valves ensure long service life and dependable performance.
20T/H RO Filter System for Borehole Water Treatment Typical Applications
Industrial Process Water Supply Solutions
Provides stable purified water for factories and processing plants using borehole sources, ensuring reliable quality for production lines and reducing scaling risk in equipment.
Agricultural Irrigation Water Treatment
Treats groundwater for agricultural irrigation projects, lowering salinity and hardness to protect crops and improve long term soil conditions.
Commercial Building Water Purification
Supplies clean and consistent water for commercial buildings, supporting daily operations with improved water quality and reduced maintenance needs.
Drinking Water Preparation Projects
Acts as a core desalination unit in potable water systems by removing dissolved salts and impurities from borehole water sources.
Mining And Remote Site Water Supply
Delivers dependable water treatment solutions for mining areas and remote facilities relying on underground water resources.
Municipal Small Scale Water Plants
Supports small municipal water treatment stations by upgrading borehole water to meet required discharge or reuse standards.
Application scope
Industrial Process Water Supply Solutions
Agricultural Irrigation Water Treatment
Commercial Building Water Purification
Drinking Water Preparation Projects
Mining And Remote Site Water Supply
Municipal Small Scale Water Plants
Industrial Process Water Supply Solutions
Provides stable purified water for factories and processing plants using borehole sources, ensuring reliable quality for production lines and reducing scaling risk in equipment.
Agricultural Irrigation Water Treatment
Treats groundwater for agricultural irrigation projects, lowering salinity and hardness to protect crops and improve long term soil conditions.
Commercial Building Water Purification
Supplies clean and consistent water for commercial buildings, supporting daily operations with improved water quality and reduced maintenance needs.
Drinking Water Preparation Projects
Acts as a core desalination unit in potable water systems by removing dissolved salts and impurities from borehole water sources.
Mining And Remote Site Water Supply
Delivers dependable water treatment solutions for mining areas and remote facilities relying on underground water resources.
Municipal Small Scale Water Plants
Supports small municipal water treatment stations by upgrading borehole water to meet required discharge or reuse standards.
20T/H RO Filter System for Borehole Water Treatment Quality Certification
The 20T/H RO Filter System for Borehole Water Treatment is manufactured under strict quality control standards and complies with international certifications such as CE and ISO, ensuring reliable performance, safety, and stable operation in global projects.
CE1
CE2
CE3
CE4
ISO1
ISO2
ISO3
ISO4
ISO5
ISO6
20T/H RO Filter System for Borehole Water Treatment FAQ
Q1: What is the daily water output capacity?
The system produces 20 tons of purified water per hour under standard feed water conditions and stable operating parameters.
Q2: Can it treat high salinity borehole water?
Yes, it is designed to handle borehole water with elevated TDS and hardness through optimized pretreatment and high rejection RO membranes.
Q3: What pretreatment units are included?
The system typically includes multimedia filtration, activated carbon filtration, and precision cartridge filtration to protect the RO membranes.
Q4: Is the system fully automatic?
It can be equipped with a PLC control system that enables automatic operation, flushing, monitoring, and safety protection.
Q5: What is the typical desalination rate?
The desalination rate is generally 98% or higher, depending on feed water quality and operating conditions.
Q6: How long do RO membranes last?
With proper pretreatment and maintenance, RO membranes usually operate efficiently for 2 to 3 years before replacement.
Technical Service
Pre-Sales Technical Consultation
Customized System Design Support
Process Flow Optimization Service
On-Site Installation Guidance
Commissioning & Start-Up Support
Operator Training Programs
Remote Technical Assistance
Spare Parts Supply Service

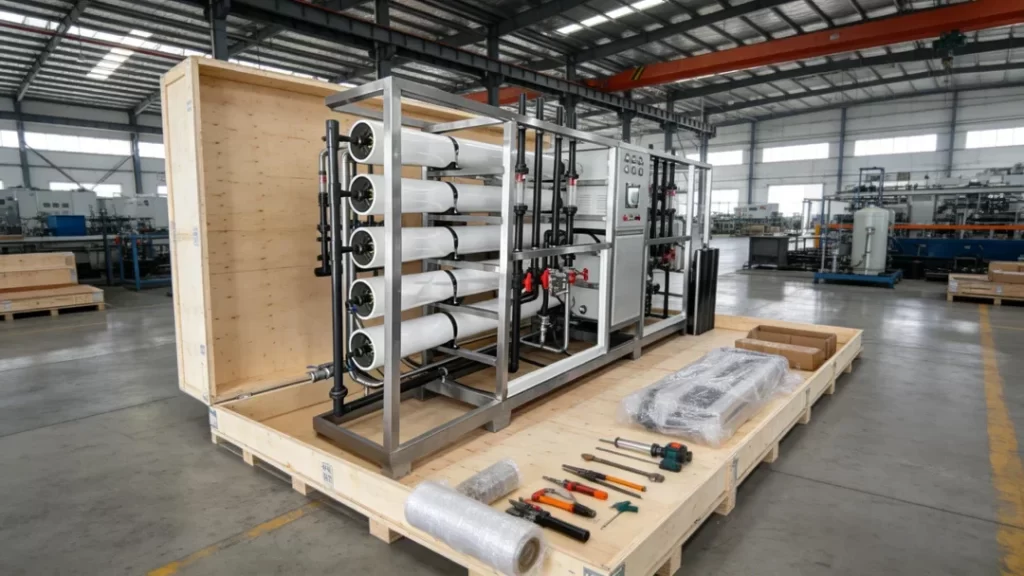

20T/H RO Filter System for Borehole Water Treatment Packaging and Global Delivery
The 20T/H RO Filter System for Borehole Water Treatment is securely packed with protective film and reinforced wooden crates to prevent damage during long distance transportation. All components are carefully inspected and labeled before shipment. We support sea freight, air freight, and land transport, providing complete export documents and technical support to ensure smooth global delivery and installation.
20T/H RO Filter System for Borehole Water Treatment Video
Watch the video to see the 20T/H RO Filter System for Borehole Water Treatment in operation, including pretreatment units, high pressure pumping, membrane separation, and stable purified water production.
Talk to Our Water Treatment Engineering Experts
Connect with our experienced water treatment engineering experts for professional guidance on technology selection, system design, and project optimization. We provide responsive support to help you achieve efficient, compliant, and reliable water treatment solutions.
Factory Environment
Our modern manufacturing facility ensures precise production and strict quality control of water treatment equipment. Advanced machinery, standardized workflows, and skilled technicians guarantee consistent performance and dependable product quality.
