70T/H River Water Treatment Ultrafiltration Skid
The 70T/H ultrafiltration skid provides efficient river water treatment with stable performance and compact modular design.
70 m³/h treatment capacity
High precision UF filtration
Effective turbidity removal
Skid mounted compact design
Low operating pressure
Automatic backwash system
Easy installation and maintenance
Reliable continuous operation
70T/H River Water Treatment Ultrafiltration Skid Specifications
The 70T/H ultrafiltration skid is specifically designed for river water purification, delivering stable filtration performance under fluctuating raw water conditions. It integrates advanced hollow fiber membranes and an optimized hydraulic layout to ensure high removal efficiency of turbidity, suspended solids, and microorganisms.
With a compact skid-mounted structure and automatic control system, the unit enables fast installation, convenient maintenance, and reliable continuous operation for municipal and industrial water supply applications.
Parameter
Specification
Treatment Capacity
70 m³/h
Membrane Type
Hollow Fiber UF
Filtration Accuracy
0.01 μm
Operating Pressure
0.1–0.3 MPa
Recovery Rate
≥ 90%
Backwash Mode
Automatic
Control System
PLC Control
Power Supply
380V / 50Hz
70T/H River Water Treatment Ultrafiltration Skid Process Flow
The 70T/H river water ultrafiltration skid follows a streamlined treatment process to ensure stable and efficient operation. Raw river water first passes through pre-treatment units such as coarse screening and sedimentation to reduce turbidity and large suspended particles. The pre-treated water then enters the UF membrane modules, where fine solids, bacteria, and colloids are effectively removed. The filtered water is collected for direct supply or further treatment, while concentrate is discharged. An automatic backwash cycle maintains membrane performance and ensures consistent filtration efficiency.
70T/H River Water Treatment Ultrafiltration Skid Core Advantage
High Filtration Efficiency and Low Maintenance
The 70T/H ultrafiltration skid provides high-quality filtration with minimal maintenance, ensuring long-term reliability and low operational costs.
Compact Design for Easy Integration
Designed as a compact, skid-mounted unit, it simplifies installation and allows seamless integration into existing water treatment facilities, saving space and time.
Advanced Membrane Technology
Utilizes advanced ultrafiltration membranes that effectively remove suspended solids, bacteria, and colloids, ensuring clean and safe water for various applications.
Automatic Backwash for Optimal Performance
The system features automatic backwashing functionality, reducing manual intervention and enhancing membrane lifespan by maintaining consistent filtration performance.
Energy and Cost Efficiency
The 70T/H ultrafiltration skid operates with low energy consumption, providing a cost-effective solution for large-scale water treatment projects without compromising performance.
Durable Construction for Harsh Environments
Built with high-quality materials, the ultrafiltration skid is designed to withstand harsh environmental conditions, ensuring reliable operation even in challenging settings like river water treatment.
70T/H River Water Treatment Ultrafiltration Skid Typical Applications
Municipal Drinking Water Treatment
This system is ideal for municipal water treatment plants, effectively purifying river water to meet drinking water quality standards, ensuring safe water for communities.
Industrial Process Water Treatment
It is highly suitable for industries that require clean and treated water for their processes, such as textiles, food processing, and manufacturing, reducing the need for chemical treatments.
Agricultural Irrigation Systems
The ultrafiltration skid ensures that irrigation water is free from contaminants, providing agricultural fields with clean water that promotes healthy crop growth and productivity.
Cooling Water Treatment for Power Plants
Used in power plants, it ensures the cooling water is effectively filtered, reducing scale buildup and extending the life of cooling systems while maintaining optimal efficiency.
Aquaculture and Fish Farming
The system provides purified water for fish farms and aquaculture, improving water quality for fish growth and reducing the risk of waterborne diseases.
Emergency Water Supply Systems
In emergency situations, such as natural disasters, this system can be deployed quickly to purify river water, providing a reliable and fast solution for urgent water supply needs.
Application scope
Municipal Drinking Water Treatment
Industrial Process Water Treatment
Agricultural Irrigation Systems
Cooling Water Treatment for Power Plants
Aquaculture and Fish Farming
Emergency Water Supply Systems
Municipal Drinking Water Treatment
This system is ideal for municipal water treatment plants, effectively purifying river water to meet drinking water quality standards, ensuring safe water for communities.
Industrial Process Water Treatment
It is highly suitable for industries that require clean and treated water for their processes, such as textiles, food processing, and manufacturing, reducing the need for chemical treatments.
Agricultural Irrigation Systems
The ultrafiltration skid ensures that irrigation water is free from contaminants, providing agricultural fields with clean water that promotes healthy crop growth and productivity.
Cooling Water Treatment for Power Plants
Used in power plants, it ensures the cooling water is effectively filtered, reducing scale buildup and extending the life of cooling systems while maintaining optimal efficiency.
Aquaculture and Fish Farming
The system provides purified water for fish farms and aquaculture, improving water quality for fish growth and reducing the risk of waterborne diseases.
Emergency Water Supply Systems
In emergency situations, such as natural disasters, this system can be deployed quickly to purify river water, providing a reliable and fast solution for urgent water supply needs.
70T/H River Water Treatment Ultrafiltration Skid Quality Certification
The system is manufactured under ISO quality management standards with strict inspection procedures throughout production. All components are tested for performance and safety to ensure reliable operation and compliance with international water treatment requirements.
CE1
CE2
CE3
CE4
ISO1
ISO2
ISO3
ISO4
ISO5
ISO6
70T/H River Water Treatment Ultrafiltration Skid FAQ
Q1: What is the treatment capacity of this system?
The system is designed to treat up to 70 cubic meters of river water per hour under standard operating conditions with stable output quality.
Q2:What contaminants can the UF skid remove?
It effectively removes turbidity, suspended solids, bacteria, and colloids, significantly improving river water quality for further use.
Q3:Is the system suitable for fluctuating river water quality?
Yes, the system is engineered to handle variations in turbidity and raw water conditions while maintaining stable filtration performance.
Q4: Does the system require manual cleaning?
The skid is equipped with an automatic backwash function that reduces manual cleaning frequency and maintains membrane efficiency.
Q5: Can the system be customized for specific projects?
Yes, configuration, materials, and control systems can be customized according to raw water characteristics and project requirements.
Q6: How is the system installed?
As a skid-mounted unit, it is delivered pre-assembled, allowing fast on-site installation and simplified commissioning.
Technical Service
Pre-Sales Technical Consultation
Customized System Design Support
Process Flow Optimization Service
On-Site Installation Guidance
Commissioning & Start-Up Support
Operator Training Programs
Remote Technical Assistance
Spare Parts Supply Service

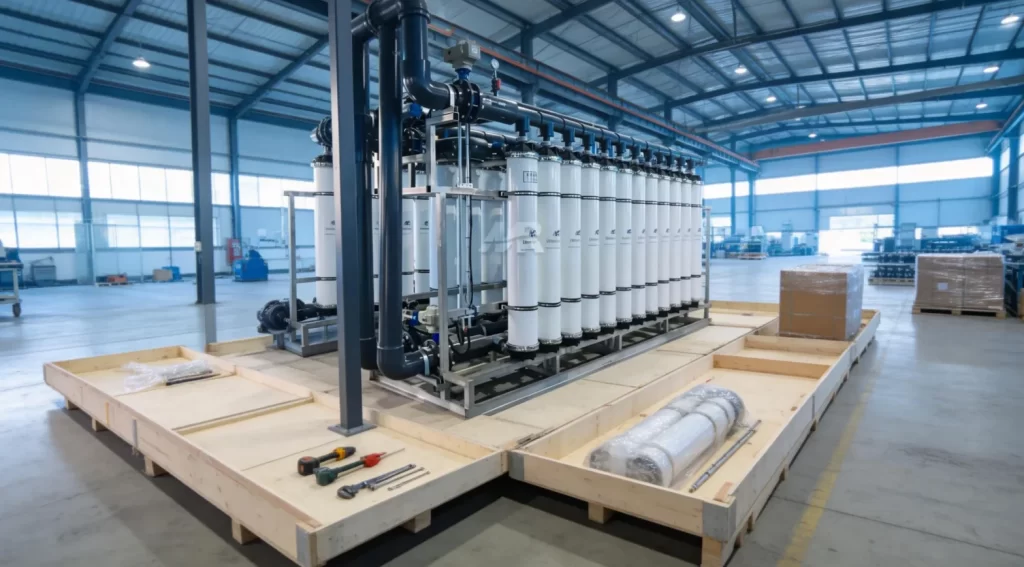

70T/H River Water Treatment Ultrafiltration Skid Packaging and Global Delivery
The 70T/H ultrafiltration skid is securely packed in reinforced wooden crates with protective internal wrapping to ensure safe long-distance transportation. Each component is carefully inspected and labeled before shipment to prevent transit damage. We support sea freight and international export logistics with complete documentation, ensuring timely delivery and smooth customs clearance for global river water treatment projects.
70T/H River Water Treatment Ultrafiltration Skid Video
Watch the product video to explore the 70T/H ultrafiltration skid structure, operation process, and installation details. The video presents real project performance and highlights key technical features for clearer understanding.
