30m3/H Ultra Filtration Equipment for RO Pretreatmen
Designed as an efficient pretreatment solution, this 30m3/H Ultra Filtration Equipment ensures stable feed water quality for RO systems and extends membrane service life.
High flux UF membrane modules
Stable 30m³/h output capacity
Effective SDI and turbidity control
Automatic backwash function
Compact skid-mounted design
Low chemical consumption
PLC intelligent control system
30m3/H Ultra Filtration Equipment for RO Pretreatment Specifications
The 30m3/H Ultra Filtration Equipment for RO Pretreatment is designed to provide stable and high-quality feed water for reverse osmosis systems. By effectively removing suspended solids, colloids, bacteria, and macromolecular organics, it reduces SDI and turbidity, protecting RO membranes and extending system lifespan.
With a compact skid-mounted structure and automatic control, the unit ensures reliable performance, low operating costs, and easy maintenance, making it suitable for industrial and municipal water treatment projects.
Parameter
Specification
Treatment Capacity
30 m³/h
Membrane Type
Hollow Fiber UF
Filtration Accuracy
0.01 μm
Operating Pressure
0.1–0.3 MPa
Turbidity of Effluent
≤0.5 NTU
SDI (15min)
≤3
Control System
PLC Automatic
Power Supply
380V / 50Hz
30m3/H Ultra Filtration Equipment for RO Pretreatment Process Flow
The 30m3/H Ultra Filtration Equipment for RO Pretreatment process typically includes raw water tank, feed pump, multimedia filter or cartridge filter as pre-filtration, followed by the ultrafiltration membrane unit for fine separation. The system operates in cross-flow or dead-end mode with automatic backwashing and periodic chemical cleaning to maintain flux. The treated water is then delivered to the RO system as stable, low-SDI feed water.
30m3/H Ultra Filtration Equipment for RO Pretreatment Core Advantage
High Efficiency Membrane Filtration Performance
The advanced UF membrane ensures efficient removal of suspended solids and colloids while maintaining stable permeate quality.
Reliable Protection for RO Membranes
By effectively reducing SDI and turbidity, the system minimizes RO fouling and significantly extends membrane lifespan.
Automatic Backwash and Cleaning System
Equipped with automatic backwash and CIP functions, the unit maintains high flux and reduces manual maintenance workload.
Compact Skid Mounted Integrated Design
The skid-mounted structure saves installation space and enables convenient transport, installation, and commissioning.
Low Operating Cost and Energy Consumption
Optimized hydraulic design reduces energy use and chemical dosing, ensuring economical long-term operation.
Stable 30m³/H Continuous Output Capacity
Designed for consistent 30m³/h flow, the system provides reliable and continuous pretreatment for RO processes.
30m3/H Ultra Filtration Equipment for RO Pretreatment Typical Applications
RO System Feed Water Pretreatment
Provides stable, low-SDI feed water for reverse osmosis systems, effectively protecting RO membranes and improving overall desalination efficiency.
Industrial Process Water Treatment
Removes suspended solids and colloids from industrial water sources to ensure consistent quality for boilers, cooling towers, and production lines.
Municipal Water Supply Projects
Used in municipal water plants to enhance turbidity removal and improve treated water clarity before advanced purification stages.
Surface Water and River Water Treatment
Suitable for treating river and lake water by reducing turbidity, bacteria, and organic matter prior to further purification.

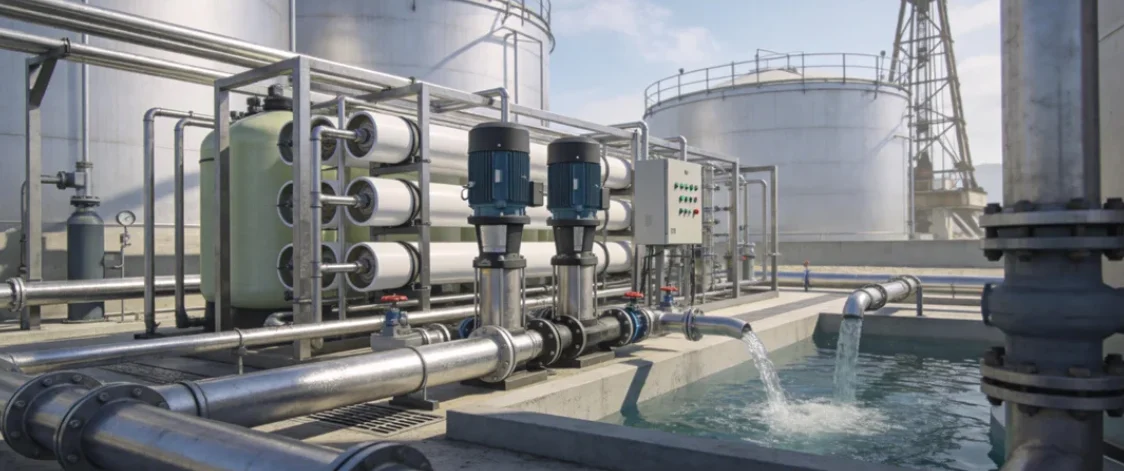

Groundwater Conditioning Applications
Improves borehole and groundwater quality by filtering fine particles and microorganisms before entering RO or other systems.
Reclaimed Water Reuse Systems
Acts as a key pretreatment step in wastewater reuse projects, ensuring stable performance for downstream RO or advanced treatment units.
Application scope
RO System Feed Water Pretreatment
Industrial Process Water Treatment
Municipal Water Supply Projects
Surface Water and River Water Treatment
Groundwater Conditioning Applications
Reclaimed Water Reuse Systems
RO System Feed Water Pretreatment
Provides stable, low-SDI feed water for reverse osmosis systems, effectively protecting RO membranes and improving overall desalination efficiency.
Industrial Process Water Treatment
Removes suspended solids and colloids from industrial water sources to ensure consistent quality for boilers, cooling towers, and production lines.
Municipal Water Supply Projects
Used in municipal water plants to enhance turbidity removal and improve treated water clarity before advanced purification stages.
Surface Water and River Water Treatment
Suitable for treating river and lake water by reducing turbidity, bacteria, and organic matter prior to further purification.
Groundwater Conditioning Applications
Improves borehole and groundwater quality by filtering fine particles and microorganisms before entering RO or other systems.
Reclaimed Water Reuse Systems
Acts as a key pretreatment step in wastewater reuse projects, ensuring stable performance for downstream RO or advanced treatment units.
30m3/H Ultra Filtration Equipment for RO Pretreatment Quality Certification
The 30m3/H Ultra Filtration Equipment for RO Pretreatment is manufactured under ISO 9001 quality management standards and complies with CE certification requirements, ensuring reliable performance, safety, and long-term operational stability.
CE1
CE2
CE3
CE4
ISO1
ISO2
ISO3
ISO4
ISO5
ISO6
30m3/H Ultra Filtration Equipment for RO Pretreatment FAQ
Q1: What is the main function of this UF system?
The system serves as an effective RO pretreatment unit by removing suspended solids, colloids, and microorganisms to ensure stable and low-SDI feed water.
Q2: What is the filtration accuracy of the membrane?
The ultrafiltration membrane typically provides a filtration accuracy of 0.01 μm, ensuring excellent turbidity and bacteria removal.
Q3: Does the system support automatic operation?
Yes, it can be equipped with a PLC control system to realize automatic filtration, backwashing, alarm, and cleaning functions.
Q4: How often does the membrane require cleaning?
Cleaning frequency depends on raw water quality, but automatic backwash and periodic CIP help maintain stable flux and long service life.
Q5: Can this equipment be customized?
Yes, the system configuration, materials, and control options can be customized according to project requirements and water quality conditions.
Technical Service
Pre-Sales Technical Consultation
Customized System Design Support
Process Flow Optimization Service
On-Site Installation Guidance
Commissioning & Start-Up Support
Operator Training Programs
Remote Technical Assistance
Spare Parts Supply Service

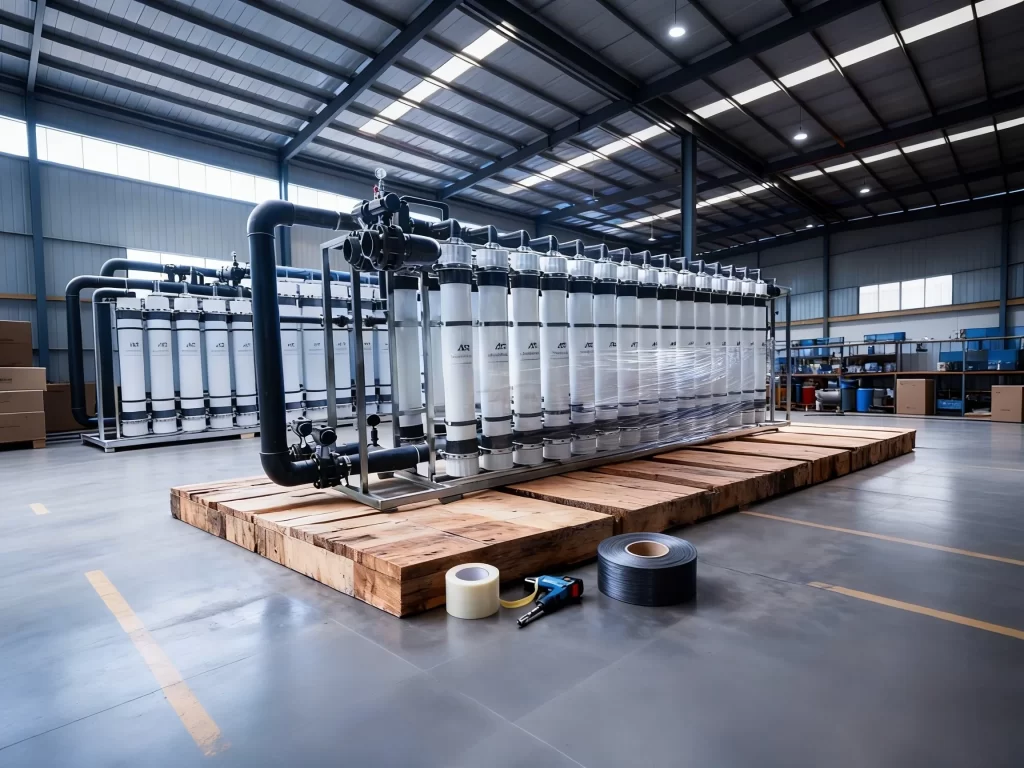

30m3/H Ultra Filtration Equipment for RO Pretreatment Packaging and Global Delivery
The 30m3/H Ultra Filtration Equipment for RO Pretreatment is securely packed with protective film, shock-absorbing materials, and strong wooden crates to ensure safe transportation. All components are fixed firmly to prevent damage during transit. We support sea, air, and land freight, and provide complete export documents to guarantee smooth customs clearance and reliable global delivery.
30m3/H Ultra Filtration Equipment for RO Pretreatment Video
Watch the 30m3/H Ultra Filtration Equipment for RO Pretreatment video to see the system structure, operating process, and on-site performance, highlighting stable output, automatic control, and efficient membrane filtration for reliable RO protection.
