20T/H UF System for Turbidity, SS, and COD Removal
The 20T/H UF System for Turbidity, SS, and COD Removal provides reliable membrane filtration, ensuring stable reduction of suspended solids and improved effluent quality.
20T/H compact treatment capacity
Effective turbidity removal
High SS removal efficiency
Partial COD reduction
Automatic backwash function
Skid-mounted modular design
Low energy consumption
20T/H UF System for Turbidity, SS, and COD Removal Specifications
The 20T/H UF System for Turbidity, SS, and COD Removal is designed for small to medium-scale wastewater treatment projects requiring stable effluent quality. Utilizing advanced ultrafiltration membrane technology, the system effectively removes suspended solids, colloids, and part of macromolecular organic matter, significantly reducing turbidity and SS while contributing to COD reduction.
With compact skid-mounted design and automatic control, the unit ensures reliable 20T/H continuous operation, easy installation, and low maintenance costs, making it suitable for industrial and municipal applications.
Parameter
Specification
Treatment Capacity
20 m³/h
Membrane Type
Hollow Fiber UF
Filtration Accuracy
0.01 μm
Operating Pressure
0.1–0.3 MPa
Influent Turbidity
≤60 NTU
Effluent Turbidity
≤1 NTU
SS Removal Rate
≥95%
Control System
PLC Automatic
20T/H UF System for Turbidity, SS, and COD Removal Process Flow
The 20T/H UF System for Turbidity, SS, and COD Removal process typically includes an equalization tank and feed pump, followed by coarse filtration or optional coagulation to improve solid-liquid separation. The wastewater then enters the ultrafiltration membrane unit, where suspended solids, colloids, and part of organic matter are retained. Automatic backwashing and periodic CIP maintain stable membrane flux, and the treated effluent is discharged or reused as required.
20T/H UF System for Turbidity, SS, and COD Removal Core Advantage
Efficient Turbidity and SS Removal Performance
The UF membrane system ensures high removal efficiency of turbidity and suspended solids with stable effluent quality.
Stable 20T/H Continuous Treatment Capacity
Designed for reliable 20T/H operation, the unit provides consistent wastewater treatment performance.
Partial COD Reduction Capability
By retaining macromolecular organic matter, the system contributes to effective COD reduction before advanced treatment.
Automatic Backwash and CIP Cleaning
Integrated automatic backwash and chemical cleaning functions maintain membrane flux and extend service life.
Compact Skid Mounted Integrated Design
The modular skid-mounted structure simplifies installation, transportation, and future system expansion.
Energy Saving and Cost Efficient Operation
Optimized hydraulic layout and intelligent control reduce energy consumption and long-term operating costs.
20T/H UF System for Turbidity, SS, and COD Removal Typical Applications
Industrial Wastewater Pretreatment Systems
Used as a pretreatment unit in industrial wastewater systems to reduce turbidity, suspended solids, and part of COD before advanced treatment stages.
Municipal Sewage Plant Upgrading Projects
Applied in municipal sewage plants to enhance solid-liquid separation efficiency and improve overall effluent clarity.
Manufacturing and Electronics Wastewater
Provides reliable membrane filtration for manufacturing wastewater streams, ensuring stable discharge or reuse quality.
Textile and Dyeing Wastewater Treatment
Effectively removes suspended solids and organic matter from textile wastewater, supporting downstream biological or advanced processes.
Food and Beverage Factory Wastewater
Suitable for treating wastewater from food processing facilities, improving water quality and reducing pollutant load before discharge.

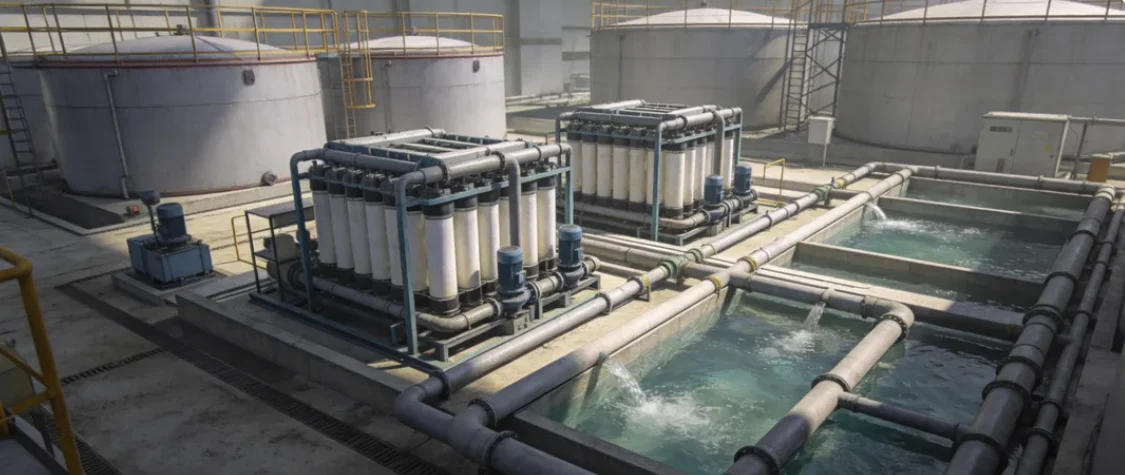

Water Reuse and Recycling Systems
Installed in water reuse projects to supply clarified effluent for secondary industrial applications or further polishing treatment.
Application scope
Industrial Wastewater Pretreatment Systems
Municipal Sewage Plant Upgrading Projects
Manufacturing and Electronics Wastewater
Textile and Dyeing Wastewater Treatment
Food and Beverage Factory Wastewater
Water Reuse and Recycling Systems
Industrial Wastewater Pretreatment Systems
Used as a pretreatment unit in industrial wastewater systems to reduce turbidity, suspended solids, and part of COD before advanced treatment stages.
Municipal Sewage Plant Upgrading Projects
Applied in municipal sewage plants to enhance solid-liquid separation efficiency and improve overall effluent clarity.
Manufacturing and Electronics Wastewater
Provides reliable membrane filtration for manufacturing wastewater streams, ensuring stable discharge or reuse quality.
Textile and Dyeing Wastewater Treatment
Effectively removes suspended solids and organic matter from textile wastewater, supporting downstream biological or advanced processes.
Food and Beverage Factory Wastewater
Suitable for treating wastewater from food processing facilities, improving water quality and reducing pollutant load before discharge.
Water Reuse and Recycling Systems
Installed in water reuse projects to supply clarified effluent for secondary industrial applications or further polishing treatment.
20T/H UF System for Turbidity, SS, and COD Removal Quality Certification
The 20T/H UF System is manufactured under strict quality control standards and complies with ISO certification requirements, ensuring reliable performance, safe operation, and stable long-term filtration efficiency for industrial wastewater treatment projects.
CE1
CE2
CE3
CE4
ISO1
ISO2
ISO3
ISO4
ISO5
ISO6
20T/H UF System for Turbidity, SS, and COD Removal FAQ
Q1: What is the main function of this 20T/H UF system?
The system is designed to remove turbidity, suspended solids, and part of COD from wastewater to improve overall effluent quality before discharge or further treatment.
Q2: What influent water quality can it handle?
It can handle wastewater with moderate turbidity and SS levels, provided proper pretreatment such as screening or sedimentation is applied.
Q3: Does the system require frequent membrane cleaning?
The system features automatic backwash and periodic CIP cleaning, which effectively control fouling and maintain stable membrane flux.
Q4: Can this UF system be integrated with RO units?
Yes, it is commonly used as a pretreatment unit for reverse osmosis systems to protect RO membranes and extend their service life.
Q5: Is the system fully automatic?
The UF system is equipped with an automatic control panel that manages filtration, backwash, and cleaning cycles for stable and convenient operation.
Technical Service
Pre-Sales Technical Consultation
Customized System Design Support
Process Flow Optimization Service
On-Site Installation Guidance
Commissioning & Start-Up Support
Operator Training Programs
Remote Technical Assistance
Spare Parts Supply Service

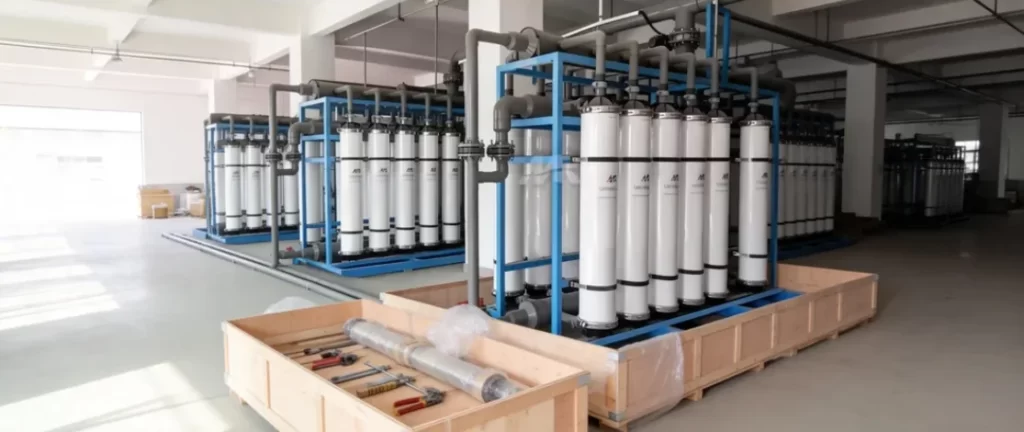

20T/H UF System for Turbidity, SS, and COD Removal Packaging and Global Delivery
The 20T/H UF System is carefully packed with protective film and reinforced wooden cases to ensure safe transportation and prevent damage during shipment. Each unit is securely fixed to avoid vibration impact. We support sea freight, air freight, and land transportation according to customer requirements, and provide complete export documentation for smooth global delivery and customs clearance.
20T/H UF System for Turbidity, SS, and COD Removal Video
Watch the 20T/H UF System video to explore its structural design, membrane modules, control panel, and on-site operation performance, demonstrating efficient turbidity, SS, and COD removal in real industrial applications.
