150T/H Ultrafiltration Industrial Wastewater Plant
The 150T/H ultrafiltration plant provides high-capacity industrial wastewater treatment with stable performance and reliable filtration efficiency.
150 m³/h treatment capacity
High precision UF membrane
Stable effluent water quality
Automatic backwash system
Low pressure energy saving
Modular skid mounted design
Suitable for large industries
Continuous stable operation
150T/H Ultrafiltration Industrial Wastewater Plant Specifications
The 150T/H ultrafiltration industrial wastewater plant is designed for high-capacity treatment applications requiring stable and efficient solid-liquid separation. It effectively removes suspended solids, colloids, and microorganisms, improving effluent quality for discharge compliance or water reuse.
With advanced hollow fiber membrane modules and an optimized hydraulic configuration, the system ensures continuous operation, low energy consumption, and convenient maintenance, making it suitable for large-scale industrial wastewater treatment projects.
Parameter
Specification
Treatment Capacity
150 m³/h
Membrane Type
Hollow Fiber UF
Filtration Accuracy
0.01 μm
Operating Pressure
0.1–0.3 MPa
Recovery Rate
≥ 85%
Backwash Mode
Automatic
Control System
PLC Control
Power Supply
380V / 50Hz
150T/H Ultrafiltration Industrial Wastewater Plant Process Flow
The 150T/H ultrafiltration plant follows a structured treatment process to ensure stable high-capacity operation. Industrial wastewater first undergoes pre-treatment such as screening, sedimentation, or flotation to remove large particles and oil. The pre-treated water then enters the UF membrane modules, where suspended solids, colloids, and microorganisms are separated. The permeate is collected for discharge or reuse, while concentrate is discharged or further treated. Automatic backwash and cleaning cycles maintain membrane performance and ensure continuous, reliable operation.
150T/H Ultrafiltration Industrial Wastewater Plant Core Advantage
High Filtration Efficiency
The 150T/H ultrafiltration system efficiently removes suspended solids, colloidal particles, and microorganisms, providing high-quality treated water for industrial applications.
Robust Membrane Performance
The system uses durable UF membranes that offer extended service life, reduced fouling, and consistent filtration performance, even in challenging wastewater conditions.
Compact and Space-Saving Design
With its compact design, the system can be easily installed in limited spaces, minimizing land requirements and optimizing operational efficiency.
Low Energy Consumption
The ultrafiltration system operates with low energy consumption, making it cost-effective and environmentally friendly while providing high-performance water treatment.
Automated Operation and Maintenance
Equipped with automated controls, the system minimizes manual intervention, ensuring efficient operation and reducing the need for frequent maintenance.
Modular Configuration for Flexibility
The plant features a modular design, allowing for easy expansion or modification to meet varying treatment capacities and industrial requirements.
150T/H Ultrafiltration Industrial Wastewater Plant Typical Applications
Industrial Wastewater Treatment
The system is ideal for treating industrial wastewater, effectively removing contaminants such as suspended solids, oils, and chemicals, ensuring compliance with discharge regulations and protecting the environment.
Textile Industry Water Treatment
In textile manufacturing, the system efficiently filters out dye, chemicals, and particulate matter, improving water quality for reuse and reducing environmental impact from wastewater discharge.
Food and Beverage Industry Wastewater
The system is used in the food and beverage industry to treat wastewater contaminated with organic materials, oils, and fats, ensuring safe water reuse and reducing the cost of disposal.
Chemical Industry Wastewater Treatment
In chemical production, the system helps treat complex wastewater containing chemicals, heavy metals, and organic pollutants, providing clean water for reuse or safe disposal.
Mining and Metal Processing Wastewater
The system effectively treats wastewater from mining and metal processing industries, removing harmful particles, heavy metals, and toxins to ensure the water is safe for discharge or reuse.

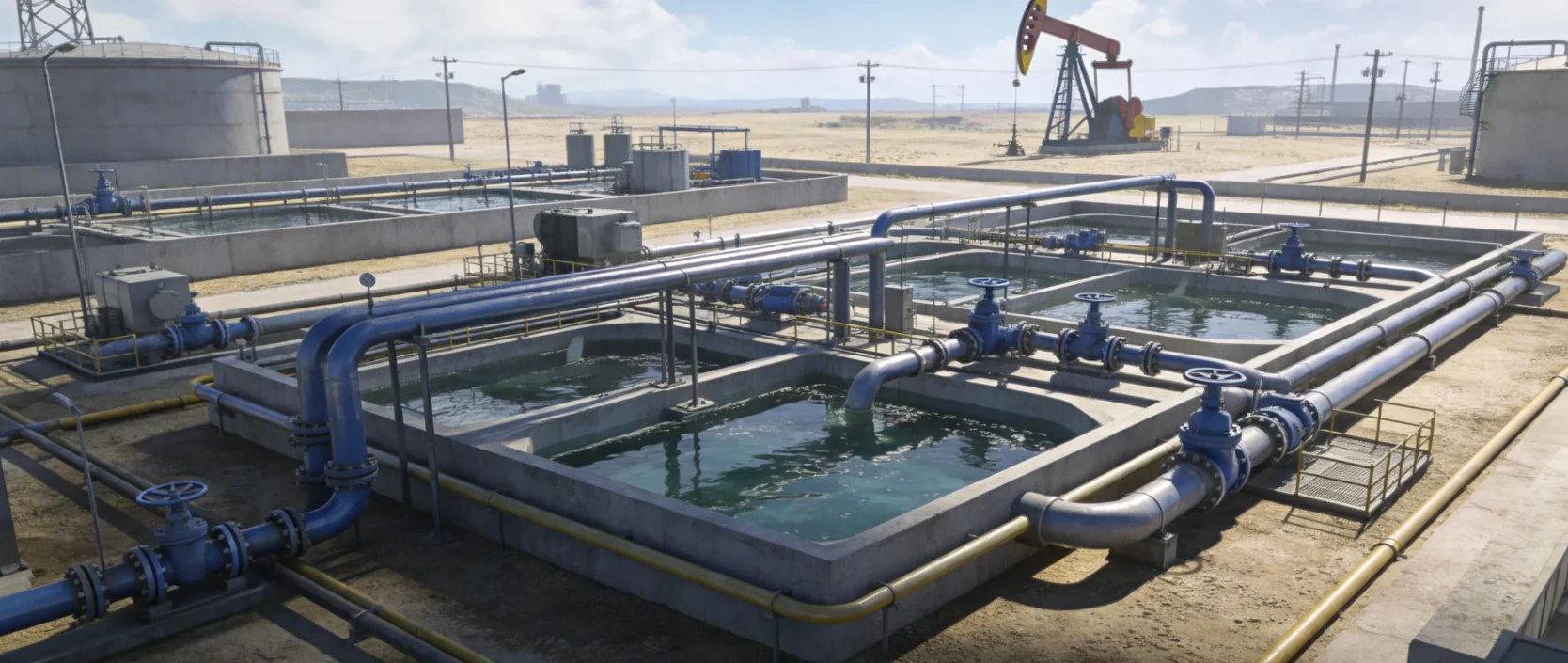

Oil and Gas Industry Water Management
In the oil and gas industry, the system is used to treat produced water, removing oil, suspended solids, and other contaminants, enabling the safe discharge or reuse of water in production processes.
Application scope
Industrial Wastewater Treatment
Textile Industry Water Treatment
Food and Beverage Industry Wastewater
Chemical Industry Wastewater Treatment
Mining and Metal Processing Wastewater
Oil and Gas Industry Water Management
Industrial Wastewater Treatment
The system is ideal for treating industrial wastewater, effectively removing contaminants such as suspended solids, oils, and chemicals, ensuring compliance with discharge regulations and protecting the environment.
Textile Industry Water Treatment
In textile manufacturing, the system efficiently filters out dye, chemicals, and particulate matter, improving water quality for reuse and reducing environmental impact from wastewater discharge.
Food and Beverage Industry Wastewater
The system is used in the food and beverage industry to treat wastewater contaminated with organic materials, oils, and fats, ensuring safe water reuse and reducing the cost of disposal.
Chemical Industry Wastewater Treatment
In chemical production, the system helps treat complex wastewater containing chemicals, heavy metals, and organic pollutants, providing clean water for reuse or safe disposal.
Mining and Metal Processing Wastewater
The system effectively treats wastewater from mining and metal processing industries, removing harmful particles, heavy metals, and toxins to ensure the water is safe for discharge or reuse.
Oil and Gas Industry Water Management
In the oil and gas industry, the system is used to treat produced water, removing oil, suspended solids, and other contaminants, enabling the safe discharge or reuse of water in production processes.
150T/H Ultrafiltration Industrial Wastewater Plant Quality Certification
Our 150T/H Ultrafiltration Industrial Wastewater Plant is manufactured under strict quality control standards and complies with international certifications such as ISO 9001 and CE, ensuring reliable performance, safety, and long-term operational stability.
CE1
CE2
CE3
CE4
ISO1
ISO2
ISO3
ISO4
ISO5
ISO6
150T/H Ultrafiltration Industrial Wastewater Plant FAQ
Q1: What is the treatment capacity of this ultrafiltration plant?
The system is designed to treat up to 150 tons per hour of industrial wastewater, ensuring stable output quality under continuous operation conditions.
Q2: What types of wastewater can this system handle?
It is suitable for various industrial effluents including textile, chemical, food processing, municipal pretreated wastewater, and other high-suspended-solids streams.
Q3: What membrane material is used in the UF modules?
The plant typically adopts high-strength PVDF hollow fiber membranes, offering excellent chemical resistance, mechanical durability, and long service life.
Q4: How often does the system require cleaning?
Cleaning frequency depends on influent water quality, but the system supports automatic backwash and periodic CIP to maintain optimal membrane performance.
Q5: Is the system fully automated?
Yes, the plant is equipped with PLC-based automatic control, enabling real-time monitoring, automatic backwashing, and alarm protection functions
Q6: Can the system be customized for specific projects?
Yes, we provide customized design solutions based on raw water quality, discharge standards, site conditions, and client-specific technical requirements.
Technical Service
Pre-Sales Technical Consultation
Customized System Design Support
Process Flow Optimization Service
On-Site Installation Guidance
Commissioning & Start-Up Support
Operator Training Programs
Remote Technical Assistance
Spare Parts Supply Service

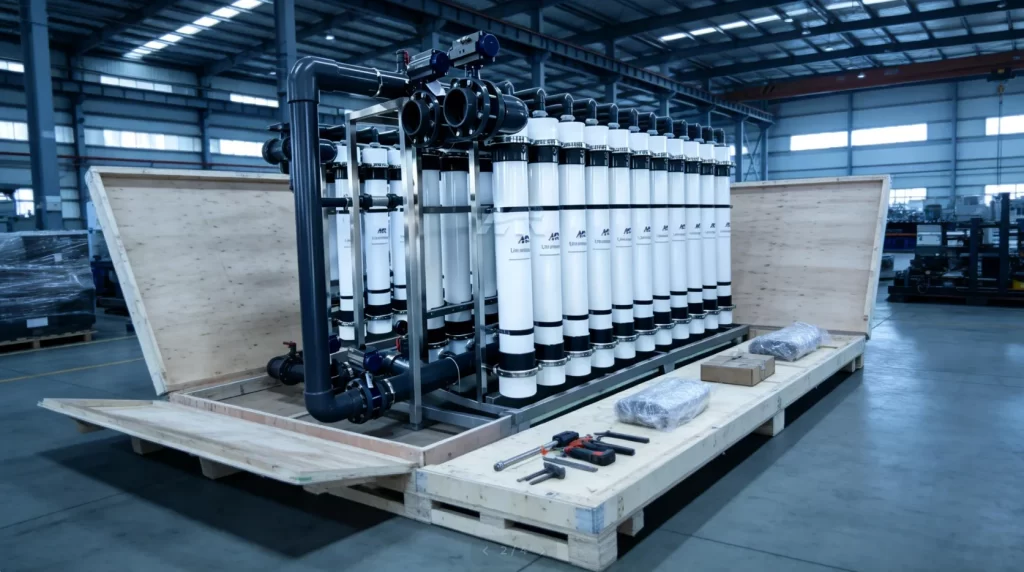

150T/H Ultrafiltration Industrial Wastewater Plant Packaging and Global Delivery
The 150T/H Ultrafiltration Industrial Wastewater Plant is securely packaged with reinforced steel frames and protective wrapping to ensure safe transportation. All key components are carefully inspected before shipment. We support sea freight, land transport, and multimodal delivery, providing reliable and timely global shipping solutions with complete export documentation.
150T/H Ultrafiltration Industrial Wastewater Plant Video
Watch our 150T/H Ultrafiltration Industrial Wastewater Plant video to explore system structure, membrane modules, automatic control operation, and on-site installation details, showcasing stable performance and efficient wastewater treatment results.
Talk to Our Water Treatment Engineering Experts
Connect with our experienced water treatment engineering experts for professional guidance on technology selection, system design, and project optimization. We provide responsive support to help you achieve efficient, compliant, and reliable water treatment solutions.
Factory Environment
Our modern manufacturing facility ensures precise production and strict quality control of water treatment equipment. Advanced machinery, standardized workflows, and skilled technicians guarantee consistent performance and dependable product quality.
