Membrane Bioreactor Water Treatment Module 313
The Membrane Bioreactor Water Treatment Module 313 combines advanced membrane filtration with biological treatment to deliver high-quality effluent, stable performance, and efficient wastewater purification for municipal and industrial applications.
High separation efficiency
Stable high-quality effluent
Compact design for space saving
Strong anti-fouling capability
Low energy consumption
Durable PVDF membrane material
High water recovery rate
Membrane Bioreactor Water Treatment Module 313 Specifications
The Membrane Bioreactor Water Treatment Module 313 is engineered for efficient wastewater treatment, combining biological degradation with high-performance membrane filtration to ensure stable effluent quality and high pollutant removal. Its robust design and low fouling membranes support long-term, reliable operation in municipal and industrial water treatment systems, offering an energy-efficient solution for water reuse and discharge compliance.
Parameter
Specification
Membrane Type
Hollow Fiber MBR Membrane
Membrane Material
PVDF
Membrane Pore Size
0.03 μm
Effective Membrane Area
31 m²
Operating Flux
10–25 L/m²·h
Operating Pressure
≤ 0.05 MPa
Operating Temperature
5–40 °C
pH Range
2–12
Air Scouring Rate
0.2–0.4 Nm³/m²·h
Application
Municipal & Industrial Wastewater Treatment
Membrane Bioreactor Water Treatment Module 313 Process Flow
The Membrane Bioreactor Water Treatment Module 313 operates by combining biological treatment with membrane filtration, where wastewater first enters the bioreactor for microbial degradation of organic pollutants, then passes through the hollow fiber membrane for solid-liquid separation, retaining biomass and suspended solids while producing clear, high-quality permeate suitable for reuse or safe discharge, ensuring stable and efficient wastewater treatment performance.
Membrane Bioreactor Water Treatment Module 313 Core Advantage
High-Strength PVDF Membrane for Long Service Life
The module uses durable PVDF membrane material with excellent chemical resistance and mechanical strength, ensuring stable long-term operation.
High Filtration Accuracy and Effluent Quality
The membrane provides precise separation of solids and microorganisms, consistently producing high-quality treated water suitable for reuse or discharge.
Compact Design with Space-Saving Installation
The compact module design allows high packing density, maximizing treatment capacity while minimizing footprint and installation space.
Strong Anti-Fouling Performance and Stable Flux
Optimized membrane structure and controlled aeration reduce fouling, maintaining stable flux and extending operational life.
Energy-Efficient Operation and Low Maintenance Cost
Efficient biological treatment combined with membrane filtration reduces energy consumption and maintenance frequency, lowering operational costs.
Flexible Integration for Various Wastewater Systems
The module can be easily integrated into municipal, industrial, or decentralized wastewater treatment systems, providing versatile and reliable solutions.
Membrane Bioreactor Water Treatment Module 313 Typical Applications
Municipal Wastewater Treatment and Reuse
The module is ideal for municipal wastewater treatment plants, efficiently removing suspended solids and pollutants to produce high-quality effluent suitable for discharge or reuse.
Industrial Wastewater Treatment and Recycling
Suitable for industrial wastewater from food, textile, and chemical industries, providing stable performance and enabling water reuse within production processes.
Hotel and Resort Sewage Management
Perfect for decentralized sewage treatment in hotels, resorts, and residential complexes, ensuring reliable effluent quality with compact installation space.
Landfill Leachate Treatment
The module effectively treats landfill leachate by removing solids and contaminants, improving overall effluent quality for further treatment or discharge.
Seawater Desalination Pretreatment
Ultrafiltration membranes are used as pretreatment in seawater desalination systems, protecting downstream RO membranes by removing suspended solids and microorganisms.
Zero Liquid Discharge and Industrial Water Reuse
Used in advanced recycling and zero liquid discharge systems, providing consistent high-quality permeate to support industrial water reuse and sustainability goals.
Application scope
Municipal Wastewater Treatment and Reuse
Industrial Wastewater Treatment and Recycling
Hotel and Resort Sewage Management
Landfill Leachate Treatment
Seawater Desalination Pretreatment
Zero Liquid Discharge and Industrial Water Reuse
Municipal Wastewater Treatment and Reuse
The module is ideal for municipal wastewater treatment plants, efficiently removing suspended solids and pollutants to produce high-quality effluent suitable for discharge or reuse.
Industrial Wastewater Treatment and Recycling
Suitable for industrial wastewater from food, textile, and chemical industries, providing stable performance and enabling water reuse within production processes.
Hotel and Resort Sewage Management
Perfect for decentralized sewage treatment in hotels, resorts, and residential complexes, ensuring reliable effluent quality with compact installation space.
Landfill Leachate Treatment
The module effectively treats landfill leachate by removing solids and contaminants, improving overall effluent quality for further treatment or discharge.
Seawater Desalination Pretreatment
Ultrafiltration membranes are used as pretreatment in seawater desalination systems, protecting downstream RO membranes by removing suspended solids and microorganisms.
Zero Liquid Discharge and Industrial Water Reuse
Used in advanced recycling and zero liquid discharge systems, providing consistent high-quality permeate to support industrial water reuse and sustainability goals.
Membrane Bioreactor Water Treatment Module 313 Quality Certification
Membrane Bioreactor Water Treatment Module 313 is manufactured under strict quality control and meets international standards such as ISO certification, ensuring reliable performance, stable operation, and consistent high-quality effluent for global projects.
CE1
CE2
CE3
CE4
ISO1
ISO2
ISO3
ISO4
ISO5
ISO6
Membrane Bioreactor Water Treatment Module 313 FAQ
Q1:What is the main function of the MBR Water Treatment Module 313?
The MBR Water Treatment Module 313 combines biological treatment with ultrafiltration membrane separation to efficiently remove suspended solids, microorganisms, and organic pollutants, producing high-quality effluent suitable for discharge or reuse.
Q2:What type of membrane does the MBR Module 313 use?
It uses durable PVDF hollow fiber membranes with high chemical resistance and long service life, ensuring stable filtration performance in municipal and industrial wastewater applications.
Q3:What is the typical pore size of the membrane?
The hollow fiber membranes typically have a pore size of 0.03 μm, effectively retaining suspended solids, bacteria, and colloids while allowing clean water to pass through.
Q4:How is fouling managed in the MBR system?
Fouling is controlled through aeration scouring, periodic backwashing, and chemical cleaning when necessary, maintaining stable flux and prolonging membrane lifespan.
Q5:Which industries can benefit from using the MBR Module 313?
It is widely used in municipal wastewater treatment, industrial water recycling, hotels and resorts, landfill leachate treatment, and seawater desalination pretreatment.
Q6:What is the expected service life of the module?
With proper operation and routine maintenance, the MBR Water Treatment Module 313 can provide several years of reliable service while maintaining high-quality effluent output.
Technical Service
Pre-Sales Technical Consultation
Customized System Design Support
Process Flow Optimization Service
On-Site Installation Guidance
Commissioning & Start-Up Support
Operator Training Programs
Remote Technical Assistance
Spare Parts Supply Service

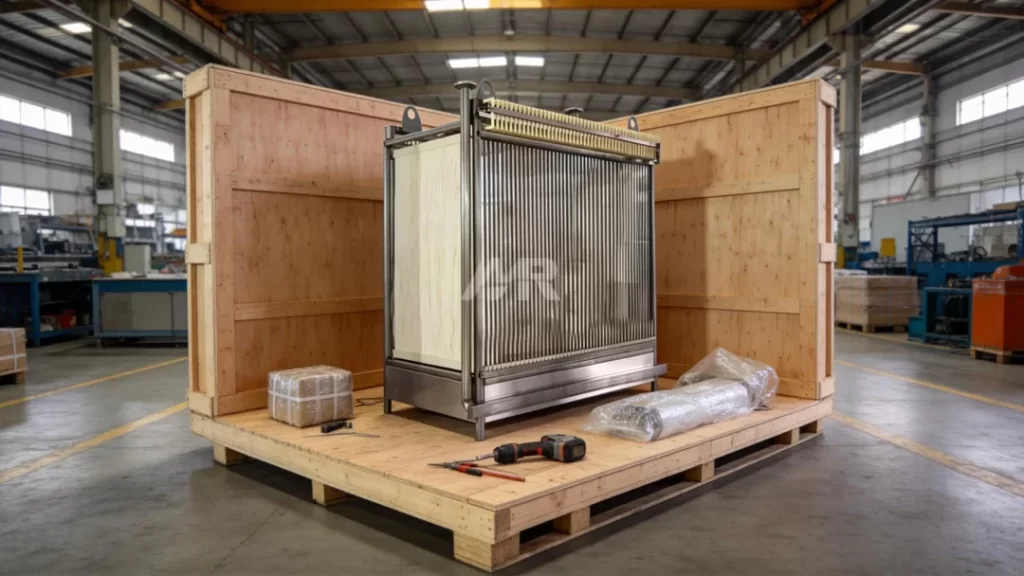

Membrane Bioreactor Water Treatment Module 313 Packaging and Global Delivery
Membrane Bioreactor Water Treatment Module 313 is carefully packed with protective materials and secured in reinforced cartons or wooden crates to ensure safe transport. Each unit undergoes inspection before shipment, and we provide reliable global delivery by sea, air, or land, ensuring timely arrival and safe handling for municipal and industrial wastewater treatment projects worldwide.
Membrane Bioreactor Water Treatment Module 313 Video
This video showcases the Membrane Bioreactor Water Treatment Module 313, highlighting its design, working principle, and operation, demonstrating how it efficiently treats wastewater and produces high-quality effluent for reuse or safe discharge.
