4T/Hour EDI Water Purification System Energy-Efficient
The 4T/Hour EDI Water Purification System offers energy-efficient ultrapure water production with stable performance, low maintenance, and high reliability, ensuring consistent water quality for various industrial applications.
High-efficiency EDI modules
Compact and space-saving design
Stable ultrapure water output
Low energy consumption operation
Easy maintenance and monitoring
Durable and corrosion-resistant components
User-friendly control interface
4T/Hour EDI Water Purification System Energy-Efficient Specifications
The 4T/Hour EDI Water Purification System is designed for efficient and reliable ultrapure water production, offering stable performance, low energy consumption, and easy maintenance. It ensures consistent high-quality water output for laboratory, pharmaceutical, and industrial applications, combining advanced EDI technology with user-friendly operation.
Parameter
Specification
Flow Rate
4T/Hour
Purity Leve
18.2 MΩ·cm
Operating Pressure
0.2-0.4 MPa
Feed Water Temperature
5-45°C
Power Supply
220V/50Hz
Dimensions
2200×900×1800 mm
Weight
450 kg
4T/Hour EDI Water Purification System Energy-Efficient Process Flow
The 4T/Hour EDI Water Purification System Energy-Efficient adopts a multi-stage purification process to ensure stable ultrapure water production. Raw water first passes through pretreatment such as sand filtration, activated carbon filtration, and softening to remove suspended solids, chlorine, and hardness. After reverse osmosis desalination, the water enters the EDI module for continuous electrodeionization, producing high-purity water without chemical regeneration. The final water is stored or directly supplied to the application system.
4T/Hour EDI Water Purification System Energy-Efficient Core Advantage
High Efficiency Continuous EDI Purification Technology
The advanced EDI module enables continuous ion removal without chemical regeneration, ensuring stable ultrapure water production and reducing operating costs.
Energy-Efficient Design for Lower Operating Costs
Optimized hydraulic and electrical design minimizes energy consumption while maintaining high purification efficiency and stable system performance.
Stable Ultrapure Water Quality Output
The integrated RO and EDI process ensures consistent high-purity water quality suitable for industries requiring reliable ultrapure water supply.
Compact Structure and Easy System Integration
The compact design saves installation space and allows easy integration into existing water treatment systems or industrial production lines.
Low Maintenance and Long Service Life
High-quality components and durable materials ensure reliable operation, reduced maintenance frequency, and extended system service life.
Automated Control for Intelligent Operation
The intelligent control system enables automatic monitoring, operation adjustment, and alarm protection for safe and stable long-term operation.
4T/Hour EDI Water Purification System Energy-Efficient Typical Applications
Ultrapure Water Supply for Semiconductor Manufacturing
This EDI water purification system provides stable ultrapure water for semiconductor fabrication, ensuring extremely low ionic contamination and supporting precision cleaning, wafer processing, and advanced microelectronics production requirements.
High Purity Water for Pharmaceutical Production
The system produces consistent high purity water for pharmaceutical manufacturing processes, meeting strict water quality standards for injection water preparation, equipment cleaning, and sterile production environments.
Laboratory Ultrapure Water Preparation Systems
Designed for laboratories and research institutions, the EDI system delivers reliable ultrapure water for analytical testing, reagent preparation, and precision experiments requiring extremely low conductivity water.
Power Plant Boiler Feed Water Treatment
The system supplies high purity water for power plant boiler feed applications, effectively removing dissolved ions to prevent scaling and corrosion, improving boiler efficiency and extending equipment lifespan.
Electronics and Precision Component Manufacturing
Ideal for electronics production lines, the EDI water system ensures stable ultrapure water for circuit board cleaning, electronic component rinsing, and high precision manufacturing processes.

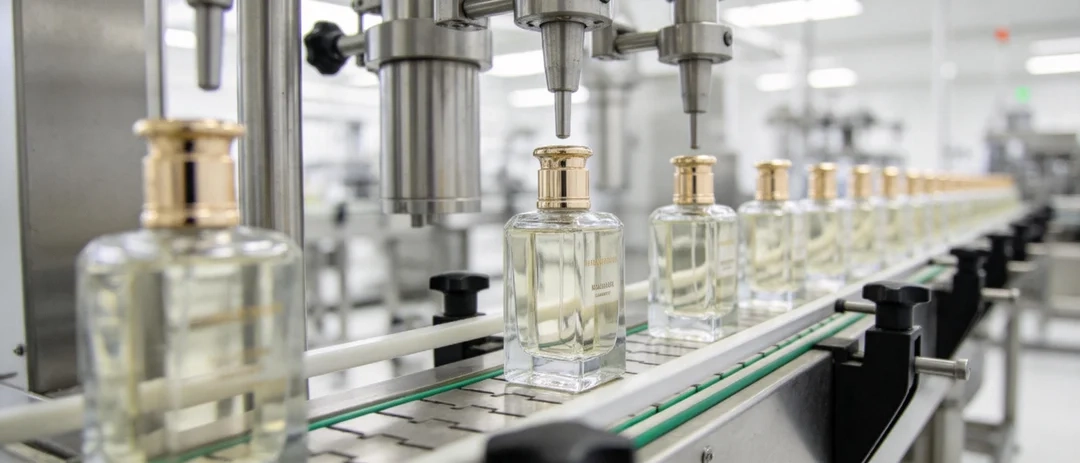

Cosmetics and High-End Chemical Production
The system supports cosmetics and specialty chemical industries by providing stable ultrapure water used in product formulation, equipment cleaning, and quality-sensitive manufacturing processes.
Application scope
Ultrapure Water Supply for Semiconductor Manufacturing
High Purity Water for Pharmaceutical Production
Laboratory Ultrapure Water Preparation Systems
Power Plant Boiler Feed Water Treatment
Electronics and Precision Component Manufacturing
Cosmetics and High-End Chemical Production
Ultrapure Water Supply for Semiconductor Manufacturing
This EDI water purification system provides stable ultrapure water for semiconductor fabrication, ensuring extremely low ionic contamination and supporting precision cleaning, wafer processing, and advanced microelectronics production requirements.
High Purity Water for Pharmaceutical Production
The system produces consistent high purity water for pharmaceutical manufacturing processes, meeting strict water quality standards for injection water preparation, equipment cleaning, and sterile production environments.
Laboratory Ultrapure Water Preparation Systems
Designed for laboratories and research institutions, the EDI system delivers reliable ultrapure water for analytical testing, reagent preparation, and precision experiments requiring extremely low conductivity water.
Power Plant Boiler Feed Water Treatment
The system supplies high purity water for power plant boiler feed applications, effectively removing dissolved ions to prevent scaling and corrosion, improving boiler efficiency and extending equipment lifespan.
Electronics and Precision Component Manufacturing
Ideal for electronics production lines, the EDI water system ensures stable ultrapure water for circuit board cleaning, electronic component rinsing, and high precision manufacturing processes.
Cosmetics and High-End Chemical Production
The system supports cosmetics and specialty chemical industries by providing stable ultrapure water used in product formulation, equipment cleaning, and quality-sensitive manufacturing processes.
4T/Hour EDI Water Purification System Energy-Efficient Quality Certification
The system is produced under strict quality control and follows international standards. Key components and the complete unit can be provided with CE and ISO certifications, ensuring reliable performance and stable long-term operation.
CE1
CE2
CE3
CE4
ISO1
ISO2
ISO3
ISO4
ISO5
ISO6
4T/Hour EDI Water Purification System Energy-Efficient FAQ
Q1: What is the typical application of a 4T/Hour EDI water purification system?
This system is widely used in industries requiring high-purity water, such as pharmaceuticals, electronics manufacturing, power generation, laboratories, and boiler feed water treatment.
Q2: What is the feed water requirement for an EDI water purification system?
The feed water is typically reverse osmosis permeate with low hardness, low organic content, and stable conductivity to ensure efficient and stable EDI operation.
Q3: What is the conductivity of the produced water?
The system can typically produce ultrapure water with conductivity as low as 0.055 μS/cm, depending on the quality of the RO permeate and system configuration.
Q4: Does the EDI system require chemical regeneration?
Unlike traditional ion exchange systems, the EDI module continuously regenerates the resin using electric current, eliminating the need for chemical regeneration.
Q5: How energy-efficient is the 4T/Hour EDI water purification system?
The system uses advanced EDI modules and optimized electrical control to minimize power consumption while maintaining stable production of high-purity water.
Q6: Is the system easy to operate and maintain?
The system is designed with automated control and monitoring features, allowing operators to easily manage system performance while reducing maintenance workload.
Technical Service
Pre-Sales Technical Consultation
Customized System Design Support
Process Flow Optimization Service
On-Site Installation Guidance
Commissioning & Start-Up Support
Operator Training Programs
Remote Technical Assistance
Spare Parts Supply Service

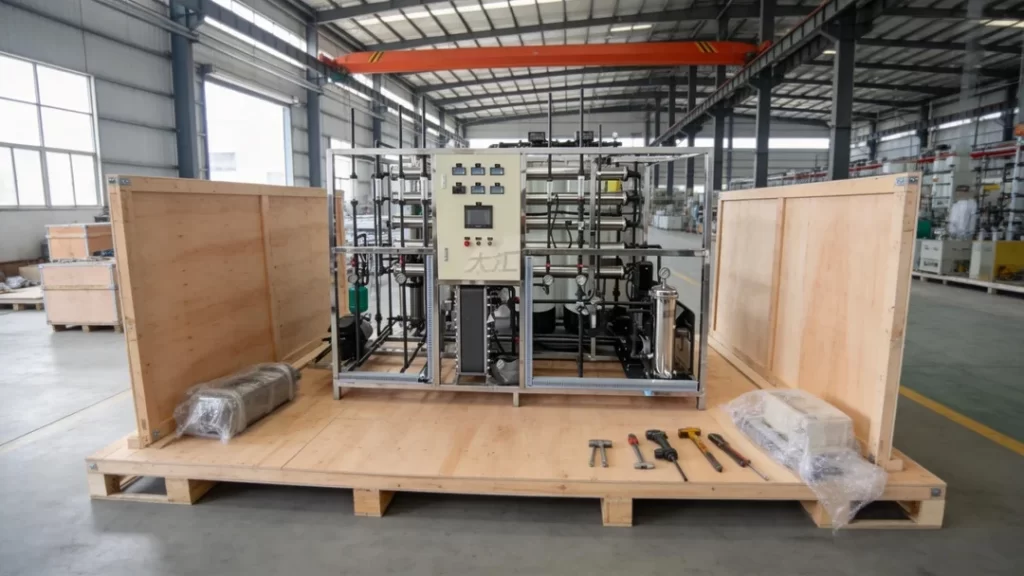

4T/Hour EDI Water Purification System Energy-Efficient Packaging and Global Delivery
The 4T/Hour EDI Water Purification System Energy-Efficient is carefully packed with reinforced wooden crates and protective internal materials to ensure safe transportation during long-distance shipping. Each unit is securely fixed to prevent movement and potential damage, while key components are additionally protected with moisture-resistant packaging. We support global delivery by sea, air, or land according to customer requirements, ensuring timely and reliable shipment to different regions worldwide.
4T/Hour EDI Water Purification System Energy-Efficient Video
Watch the working process of the 4T/Hour EDI Water Purification System Energy-Efficient in this video. It presents the complete purification flow, key components, and stable performance, helping you better understand the system’s reliable operation and efficiency.
Talk to Our Water Treatment Engineering Experts
Connect with our experienced water treatment engineering experts for professional guidance on technology selection, system design, and project optimization. We provide responsive support to help you achieve efficient, compliant, and reliable water treatment solutions.
Factory Environment
Our modern manufacturing facility ensures precise production and strict quality control of water treatment equipment. Advanced machinery, standardized workflows, and skilled technicians guarantee consistent performance and dependable product quality.
