3T/H Borehole Water Treatment Containerized RO Equipment
The 3T/H Borehole Water Treatment Containerized RO Equipment offers efficient, high-quality water treatment for borehole sources. This compact, containerized solution ensures clean water output for various applications, with easy installation and minimal maintenance. It is ideal for remote locations and areas with limited access to clean water.
Compact and portable design
High efficiency with low energy consumption
Automated operation for ease of use
Suitable for remote or off-grid locations
Minimal maintenance and operational costs
Easy integration with existing systems
3T/H Borehole Water Treatment Containerized RO Equipment Specifications
The 3T/H Borehole Water Treatment Containerized RO Equipment is designed to provide high-quality water treatment with maximum efficiency. It is ideal for borehole water sources and offers a compact, modular system housed within a container for easy transport and installation. This system ensures effective removal of contaminants, making it suitable for both industrial and residential use.
Parameter
Specification
Flow rate
3T/H
Operating pressure
1.1-1.3 MPa
Recovery rate
70-75%
Power supply
380V/50Hz
Dimensions
20ft container size
Filtration stages
5-7 stages
Pre-treatment
Sand filter, activated carbon filter
Post-treatment
UV sterilizer or chlorine dosing
3T/H Borehole Water Treatment Containerized RO Equipment Process Flow
The process flow of the 3T/H Borehole Water Treatment Containerized RO Equipment begins with the water intake, where raw borehole water enters the system. It first passes through pre-treatment stages such as sand filtration and activated carbon filtration to remove large particles and organic contaminants. The water then enters the reverse osmosis (RO) unit, where impurities are effectively removed. Post-treatment can include UV sterilization or chlorine dosing for final disinfection before the purified water is ready for use.
3T/H Borehole Water Treatment Containerized RO Equipment Core Advantage
Compact and Efficient Design
The containerized system is compact, making it easy to transport, install, and operate in remote locations while maintaining high efficiency in water treatment.
Robust and Reliable Operation
Built with durable materials and advanced technology, the system ensures reliable performance even in harsh environments, offering continuous operation with minimal downtime.
Cost-Effective Water Treatment
The system reduces energy consumption and operational costs by integrating energy-saving components, making it a highly cost-effective solution for water treatment.
Quick Deployment and Setup
Designed for rapid deployment, the system can be set up quickly without the need for complex infrastructure, ensuring fast access to clean water.
Modular and Scalable
The containerized system can be scaled easily by adding units or modules, allowing it to meet increasing water demand as needed.
Easy Maintenance and Support
The system is designed with ease of maintenance in mind, featuring user-friendly interfaces and readily available support, ensuring smooth and efficient operation.
3T/H Borehole Water Treatment Containerized RO Equipment Typical Applications
Industrial Water Treatment
The system offers a cost-effective solution for industries that require large amounts of purified water, ensuring efficient treatment for manufacturing processes with minimal waste.
Remote Communities Water Supply
The system is ideal for providing clean drinking water to remote areas where access to fresh water is limited, ensuring reliable water purification in challenging conditions.
Agricultural Irrigation
Suitable for agricultural applications, it efficiently purifies borehole water for irrigation, ensuring crops receive quality water for optimal growth while conserving resources.
Emergency Relief Operations
In disaster zones, this system provides essential potable water quickly, making it an invaluable tool for emergency response teams during natural disasters or humanitarian crises.
Mining and Construction Sites
For mining or construction projects that require large quantities of water, the system provides a reliable source of treated water, improving operational efficiency and reducing environmental impact.
Rural and Off-Grid Applications
Perfect for off-grid installations, it ensures that rural areas with no access to centralized water supply networks can still have safe and reliable water for daily use.
Application scope
Industrial Water Treatment
Remote Communities Water Supply
Agricultural Irrigation
Emergency Relief Operations
Mining and Construction Sites
Rural and Off-Grid Applications
Industrial Water Treatment
The system offers a cost-effective solution for industries that require large amounts of purified water, ensuring efficient treatment for manufacturing processes with minimal waste.
Remote Communities Water Supply
The system is ideal for providing clean drinking water to remote areas where access to fresh water is limited, ensuring reliable water purification in challenging conditions.
Agricultural Irrigation
Suitable for agricultural applications, it efficiently purifies borehole water for irrigation, ensuring crops receive quality water for optimal growth while conserving resources.
Emergency Relief Operations
In disaster zones, this system provides essential potable water quickly, making it an invaluable tool for emergency response teams during natural disasters or humanitarian crises.
Mining and Construction Sites
For mining or construction projects that require large quantities of water, the system provides a reliable source of treated water, improving operational efficiency and reducing environmental impact.
Rural and Off-Grid Applications
Perfect for off-grid installations, it ensures that rural areas with no access to centralized water supply networks can still have safe and reliable water for daily use.
3T/H Borehole Water Treatment Containerized RO Equipment Quality Certification
Our 3T/H Borehole Water Treatment Containerized RO Equipment meets international quality standards, with certifications such as ISO 9001 for quality management and CE for product safety, ensuring reliable and efficient performance in all applications.
CE1
CE2
CE3
CE4
ISO1
ISO2
ISO3
ISO4
ISO5
ISO6
3T/H Borehole Water Treatment Containerized RO Equipment FAQ
Q1: What is the capacity of the 3T/H Borehole Water Treatment Containerized RO Equipment?
The system is designed to treat up to 3 tons of borehole water per hour, making it ideal for small to medium-scale water purification applications.
Q2: How does the system handle high salinity water?
The system utilizes advanced reverse osmosis (RO) technology to effectively remove salt and other dissolved solids, ensuring purified water suitable for various uses.
Q3: What is the maintenance schedule for this RO system?
Routine maintenance involves checking the pre-filters every 3-6 months, cleaning the RO membranes annually, and ensuring that all components are in optimal working condition to guarantee long-term performance.
Q4: Is the equipment suitable for remote locations?
Yes, this containerized RO system is mobile and compact, making it perfect for remote locations where access to clean water is limited, with easy installation and minimal operational requirements.
Q5: What certifications does the system have?
The system is certified with ISO 9001 for quality management and CE certification for safety, ensuring high performance and compliance with international standards.
Q6: How energy-efficient is the 3T/H Borehole Water Treatment Containerized RO Equipment?
The system is designed to be highly energy-efficient, incorporating energy recovery devices and low-energy pumps that minimize energy consumption while maintaining high-quality output.
Technical Service
Pre-Sales Technical Consultation
Customized System Design Support
Process Flow Optimization Service
On-Site Installation Guidance
Commissioning & Start-Up Support
Operator Training Programs
Remote Technical Assistance
Spare Parts Supply Service

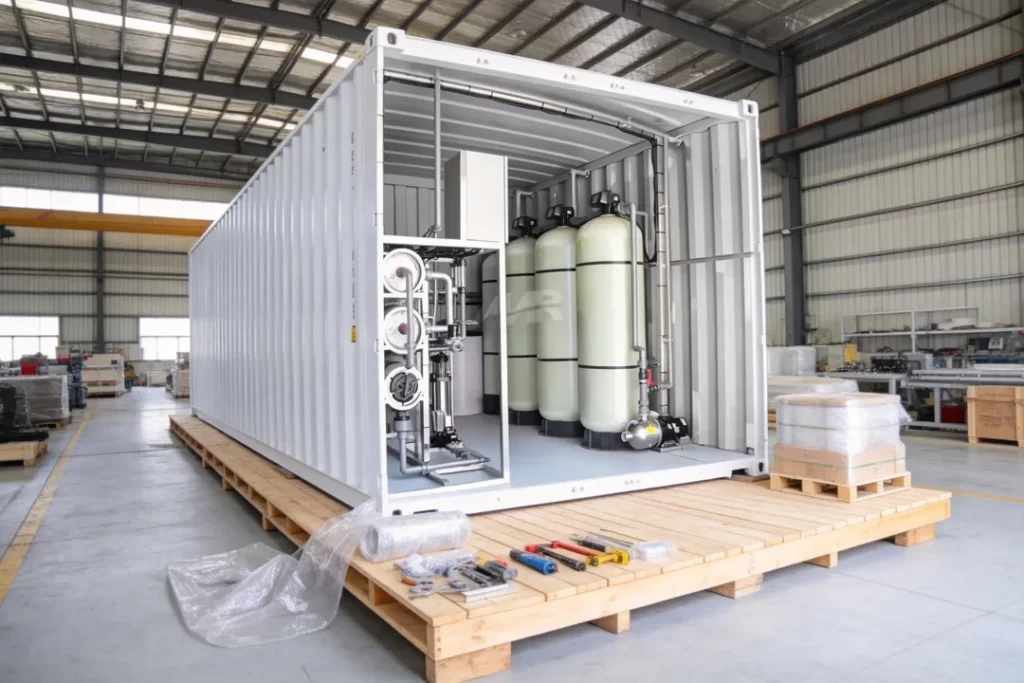

3T/H Borehole Water Treatment Containerized RO Equipment Packaging and Global Delivery
The 3T/H Borehole Water Treatment Containerized RO Equipment is carefully packaged in a robust container for secure shipping, ensuring it arrives at its destination in optimal condition. The system is designed for global delivery, offering flexibility for international clients. Whether shipped by sea, air, or land, the equipment is ready for quick installation upon arrival, making it suitable for use in diverse locations with minimal downtime.
3T/H Borehole Water Treatment Containerized RO Equipment Video
Watch the video to see the 3T/H Borehole Water Treatment Containerized RO Equipment in action. It showcases the system’s efficient water treatment process, highlighting its compact design, ease of installation, and performance in various borehole water conditions.
