5m3/Hour Reverse Osmosis Desalination of Seawater Plant
The 5m3/Hour Reverse Osmosis Desalination Plant is designed to efficiently convert seawater into high-quality freshwater for various applications, offering reliable performance and low energy consumption.
5m3/Hour output capacity
High desalination efficiency
Energy-saving operation
PLC automatic control system
Durable and corrosion-resistant materials
Compact and space-efficient design
Low maintenance requirements
5m3/Hour Reverse Osmosis Desalination of Seawater Plant Specifications
The 5m3/Hour Reverse Osmosis Desalination Plant is designed for efficient and reliable seawater desalination. With high performance RO membranes and advanced filtration, it produces high-quality freshwater suitable for a variety of industrial, agricultural, and potable uses. The plant operates with energy-saving features and automated controls, ensuring ease of use and low maintenance, making it ideal for both small and medium-scale desalination needs.
Parameter
Specification
Capacity
5m3/H
Desalination Rate
≥98%
Recovery Rate
45-50%
Feed Water TDS
≤35000 ppm
Operating Pressure
5.5–7 MPa
Power Supply
380V 50Hz 3 Phase
Control System
PLC automatic control
Frame Material
SUS304 Stainless Steel
5m3/Hour Reverse Osmosis Desalination of Seawater Plant Process Flow
The 5m3/Hour Reverse Osmosis Desalination Plant follows a multi-stage treatment process to efficiently remove salts and impurities from seawater. Raw seawater first passes through a series of pre-filters, including multimedia and activated carbon filters, to remove large particles and organic matter. The pre-treated water is then pumped at high pressure through the RO membranes, where desalination occurs. The purified water is collected and stored for use, while the concentrated brine is discharged safely, ensuring high-quality freshwater output with minimal energy consumption.
5m3/Hour Reverse Osmosis Desalination of Seawater Plant Core Advantage
Efficient 5m3/Hour Seawater Desalination
Designed to provide 5m3 of freshwater per hour, ensuring a consistent and reliable water supply for various applications.
High Desalination Efficiency
Achieves over 98% desalination rate, producing high-quality freshwater while effectively removing dissolved salts and contaminants.
Energy-Efficient Operation
Optimized system design reduces energy consumption while maintaining stable operation, lowering overall operational costs.
Automatic PLC Control for Easy Operation
Equipped with a PLC control system, it enables automated monitoring, operation, and fault detection for minimal manual intervention.
Corrosion-Resistant and Durable Materials
Built with SUS304 stainless steel, the system is highly resistant to corrosion, ensuring long-term performance in marine environments.
Compact and Modular Design for Flexibility
The system’s modular configuration allows for space-saving installation and easy scalability to meet growing water demand.
5m3/Hour Reverse Osmosis Desalination of Seawater Plant Typical Applications
Drinking Water Supply for Remote Areas
This system provides reliable, clean drinking water for remote coastal and island communities, where freshwater sources are limited or unavailable.
Industrial Water Supply for Coastal Plants
Delivers high-quality water for cooling, processing, and cleaning applications in coastal industries, ensuring consistent performance for operations.
Agricultural Irrigation in Coastal Regions
Offers a sustainable source of purified water for irrigation, helping farmers in coastal areas with saline water challenges to grow crops efficiently.
Aquaculture and Fish Farming
Provides safe, desalinated water for aquaculture operations, ensuring a clean and healthy environment for marine life in fish farms and hatcheries.
Emergency Water Supply for Disaster Zones
The system can be quickly deployed to provide emergency desalinated water in areas affected by natural disasters or water scarcity.
Resort and Hotel Water Treatment
Ideal for resorts and hotels near the coast, this system ensures a continuous supply of high-quality water for guest services and daily operations.
Application scope
Drinking Water Supply for Remote Areas
Industrial Water Supply for Coastal Plants
Agricultural Irrigation in Coastal Regions
Aquaculture and Fish Farming
Emergency Water Supply for Disaster Zones
Resort and Hotel Water Treatment
Drinking Water Supply for Remote Areas
This system provides reliable, clean drinking water for remote coastal and island communities, where freshwater sources are limited or unavailable.
Industrial Water Supply for Coastal Plants
Delivers high-quality water for cooling, processing, and cleaning applications in coastal industries, ensuring consistent performance for operations.
Agricultural Irrigation in Coastal Regions
Offers a sustainable source of purified water for irrigation, helping farmers in coastal areas with saline water challenges to grow crops efficiently.
Aquaculture and Fish Farming
Provides safe, desalinated water for aquaculture operations, ensuring a clean and healthy environment for marine life in fish farms and hatcheries.
Emergency Water Supply for Disaster Zones
The system can be quickly deployed to provide emergency desalinated water in areas affected by natural disasters or water scarcity.
Resort and Hotel Water Treatment
Ideal for resorts and hotels near the coast, this system ensures a continuous supply of high-quality water for guest services and daily operations.
5m3/Hour Reverse Osmosis Desalination of Seawater Plant Quality Certification
The 5m3/Hour Reverse Osmosis Desalination Plant meets international quality standards and is certified with CE and ISO, ensuring its reliability, performance, and compliance with safety and environmental regulations for seawater desalination.
CE1
CE2
CE3
CE4
ISO1
ISO2
ISO3
ISO4
ISO5
ISO6
5m3/Hour Reverse Osmosis Desalination of Seawater Plant FAQ
Q1: How much seawater can this system treat daily?
The 5m3/Hour system can treat up to 120 cubic meters of seawater per day, providing a reliable supply of fresh water for small to medium-scale applications.
Q2: What is the required feed water quality for optimal performance?
The system is designed for seawater with TDS up to 35,000 ppm, and requires basic pre-treatment such as filtration to ensure the longevity of the RO membranes.
Q3: Is the system suitable for continuous operation?
Yes, the system is designed for continuous, 24/7 operation, providing consistent water supply with minimal downtime and reliable performance.
Q4: What maintenance is required for the system?
Regular maintenance includes checking and replacing filters, cleaning the RO membranes, and inspecting system components for wear and tear to ensure optimal performance.
Q5: How long do the RO membranes last?
The RO membranes typically last between 1-3 years, depending on feed water quality and proper maintenance, but can last longer with optimal operating conditions.
Q6: Can the system be upgraded or expanded in the future?
Yes, the modular design allows for easy upgrades and capacity expansion to meet future water demand requirements.
Technical Service
Pre-Sales Technical Consultation
Customized System Design Support
Process Flow Optimization Service
On-Site Installation Guidance
Commissioning & Start-Up Support
Operator Training Programs
Remote Technical Assistance
Spare Parts Supply Service

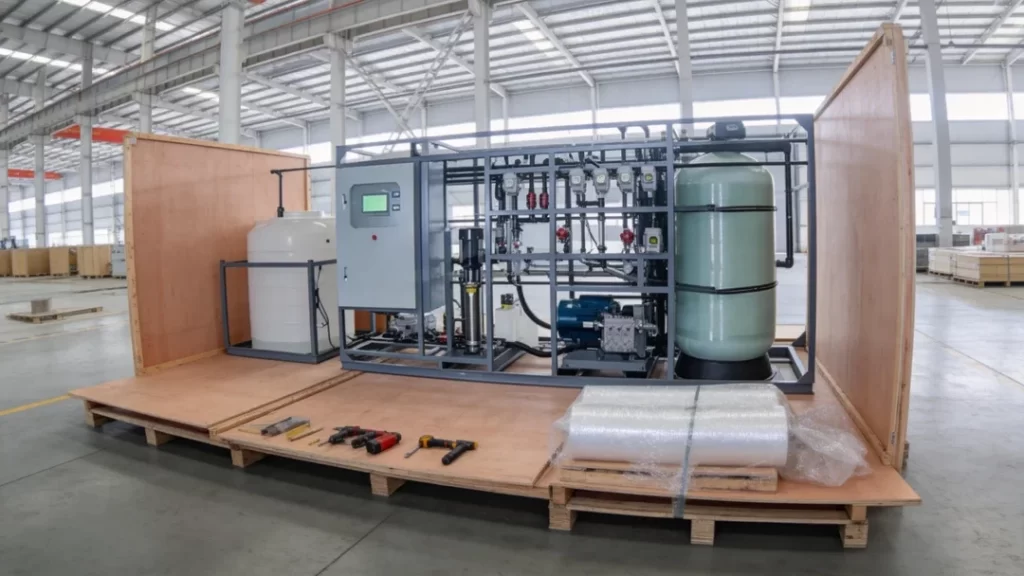

5m3/Hour Reverse Osmosis Desalination of Seawater Plant Packaging and Global Delivery
The 5m3/Hour Reverse Osmosis Desalination Plant is carefully packaged to ensure safe transit. It is wrapped in protective materials like foam and plastic, then placed in reinforced wooden crates. We offer flexible shipping options, including sea, air, and land transportation, to meet customer requirements. Complete export documentation is provided for smooth customs clearance, and we ensure timely global delivery to all destinations, with proper handling to prevent damage during transit.
5m3/Hour Reverse Osmosis Desalination of Seawater Plant Video
Watch the product video to see the 5m3/Hour Reverse Osmosis Desalination Plant in action. The video highlights its design, key features, and the step-by-step desalination process, giving you a better understanding of how the system efficiently converts seawater into high-quality freshwater for various applications.
